*** PHD Phoenix Depth***

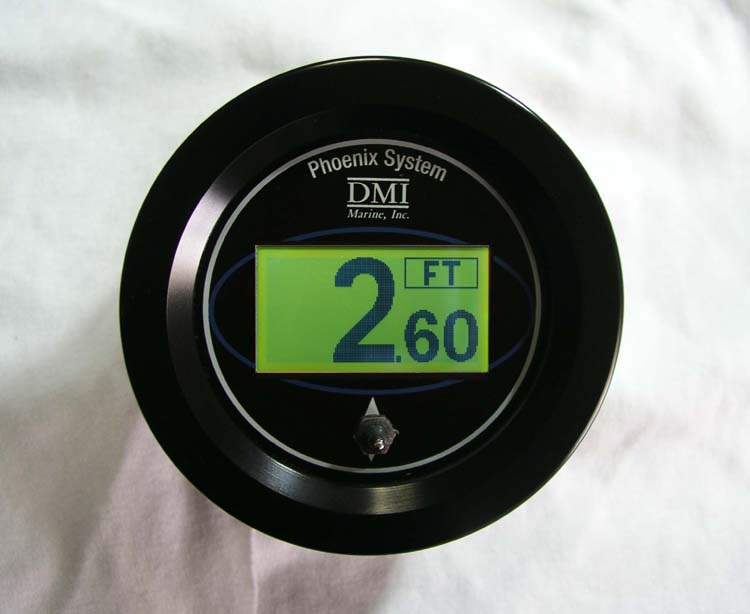

This unique Depth unit fits into a 4" cutout , the instrument will display:

Depth  *  Water Temperature  *  Keel Offset *

Battery Voltage  *  Min & Max Alarms  *  Up Timer *

Down Timer  *  NMEA Input data

Front toggle Switch

All functions & operations are controlled by this switch.  The switch operates in the up (p) and down (q) positions only. In the normal operation mode the toggle can be used to scroll up or down to select different screen functions. In the MENU mode down is used to SCROLL and up to ENTER.

Menuís and Sub-Menuís



The Menu can be accessed by holding down the toggle switch for 3 seconds. Then you can access all sub menus by highlighting the desired sub menu and click up to select.

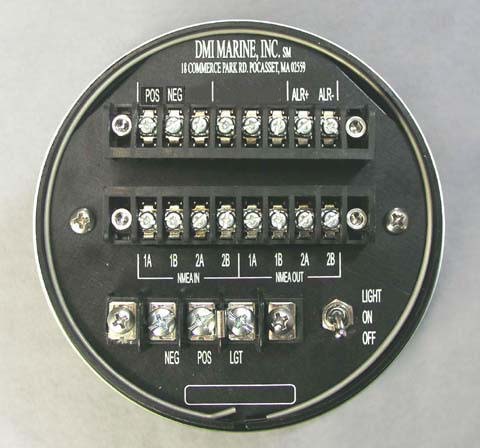

Rear panel contains all connections.

POS and NEG :  used to power up the Active transducer, 12VDC.

ALR+ / ALR- : +12vdc output for external alarm.

NMEA IN : Two NMEA 0183 input connections. 1A(+) 1B(-) & 2A(+) & 2B(-)  Use these inputs for the Depth Transducer NMEA IN. Both inputs are combined and exit NMEA OUT port 2. Both data inputs can be viewed in menu under NMEA Reader function.

NMEA OUT : Two NMEA 0183 outputs connections. Port 1 contains only PHS NMEA data. Port 2 contains port 1 & port 2 inputs as well as PHS outputs.

NEG POS LGT : Power and night light inputs. Input voltage is 12vdc. Use jumper across POS & LGT for night light operation, or remove jumper and use external light control for night light intensity adjustment.

* This Depth sounder uses Active NMEA transmitting transducers ONLY. Passive style transducers CAN NOT be used.
